Aluminum electrolytic capacitor, 100µF capacitance, 35V voltage rating, and 20% tolerance. Features 160mΩ ESR, 600mA ripple current, and a 2000-hour life at 105°C. Surface mountable with 8mm diameter and 10.2mm height, this component is AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V101AP technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
160mR
Height
10.2mm
Impedance
160mR
Lead Free
Lead Free
Lead Length
3.4mm
Lead Pitch
3.1mm
Leakage Current
35uA
Length
10.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
600mA
Ripple Current (AC)
600mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
DC Rated Voltage
35V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1V101AP Datasheet
Download the complete datasheet for Panasonic EEE-FK1V101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

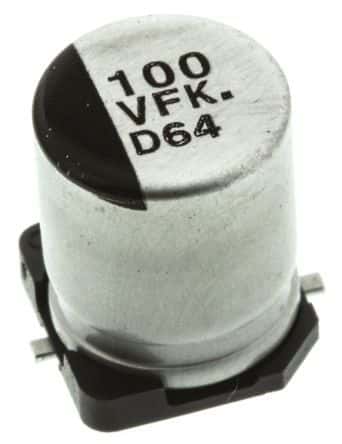

Product Images
