Surface mount aluminum electrolytic capacitor with 22µF capacitance and 35V voltage rating. Features 20% tolerance, 160mA ripple current, and 700mΩ ESR. Operates from -55°C to 105°C with a 2000-hour life at rated temperature. Radial construction in a 5mm diameter, 5.8mm height cylindrical package. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V220R technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 700mR |
| Height | 5.8mm |
| Height - Seated (Max) | 0.228inch |
| Impedance | 700mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FK1V220R Datasheet
Download the complete datasheet for Panasonic EEE-FK1V220R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

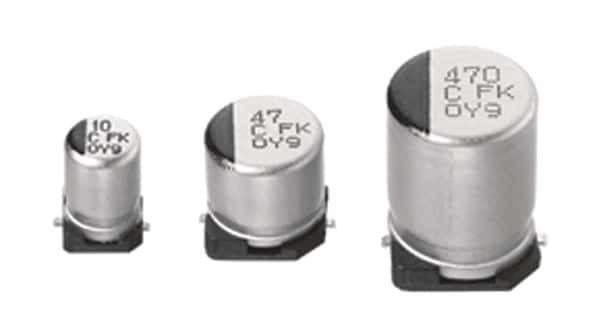

Product Images
