330µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 80mΩ ESR, 850mA ripple current, and a 5000-hour life at 105°C. Surface mountable in a 10mm diameter, 10.2mm height cylindrical package. AEC-Q200 rated and RoHS compliant.
PackageRadial
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V331GP technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
80mR
Height
10.2mm
Impedance
80mR
Leakage Current
3uA
Length
10.2mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1V331GP Datasheet
Download the complete datasheet for Panasonic EEE-FK1V331GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

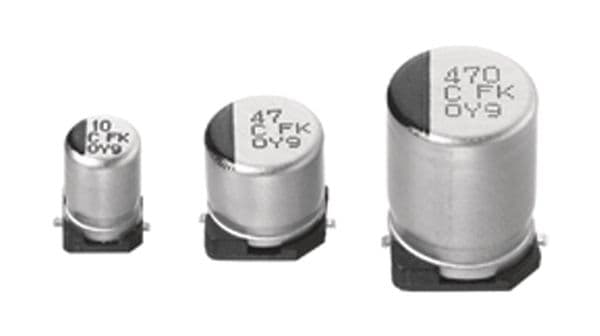

Product Images
