68µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features a 340mΩ ESR and 280mA ripple current rating. Constructed for surface mount applications with a 1.8mm lead pitch and a 6.3mm diameter. Operates across a -55°C to 105°C temperature range with a 2000-hour life expectancy.
PackageRadial
Voltage35V
Capacitance68uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FK1V680XP technical specifications.
General
Capacitance
68uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
ESR (Equivalent Series Resistance)
340mR
Height
7.7mm
Height - Seated (Max)
0.315inch
Impedance
340mR
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.8mm
Leakage Current
3uA
Length
7.7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
900
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
280mA
Ripple Current (AC)
280mA
RoHS Compliant
Yes
Series
FK
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
7.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FK1V680XP Datasheet
Download the complete datasheet for Panasonic EEE-FK1V680XP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

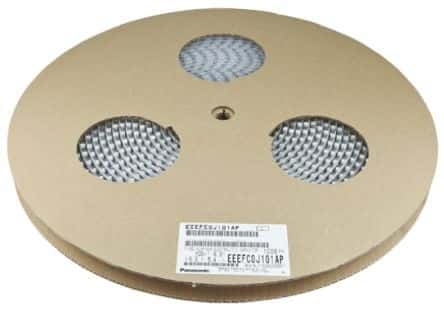

Product Images
