PackageRadial
Capacitance220uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EEE-FP1A221AV technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 180mR |
| Features | General Purpose |
| Height | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FP1A221AV Datasheet
Download the complete datasheet for Panasonic EEE-FP1A221AV to view detailed technical specifications.
No datasheet is available for this part.

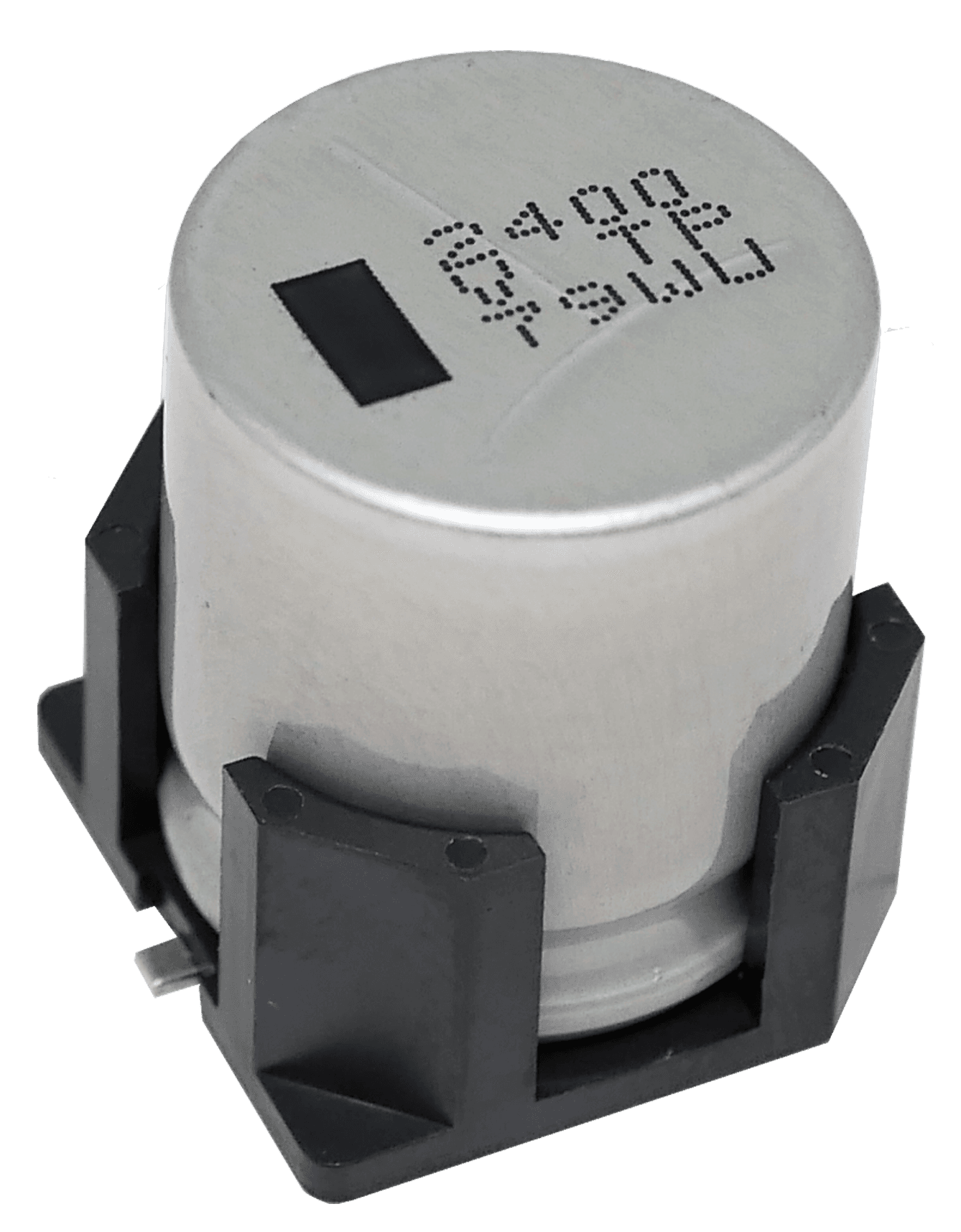

Product Images
