100µF, 50V aluminum electrolytic capacitor with 20% tolerance. Features 180mΩ ESR, 670mA ripple current, and a maximum operating temperature of 105°C. Surface mountable in an 8mm diameter, 10.2mm height radial package. Designed for automotive applications with AEC-Q200 qualification and 2000 hours of life at rated conditions.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1H101AP technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.1%
ESR (Equivalent Series Resistance)
180mR
Height
10.2mm
Height - Seated (Max)
0.413inch
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
50uA
Length
10.5mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
670mA
Ripple Current (AC)
670mA
RoHS Compliant
Yes
Series
FP
Termination
SMD/SMT
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FP1H101AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1H101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

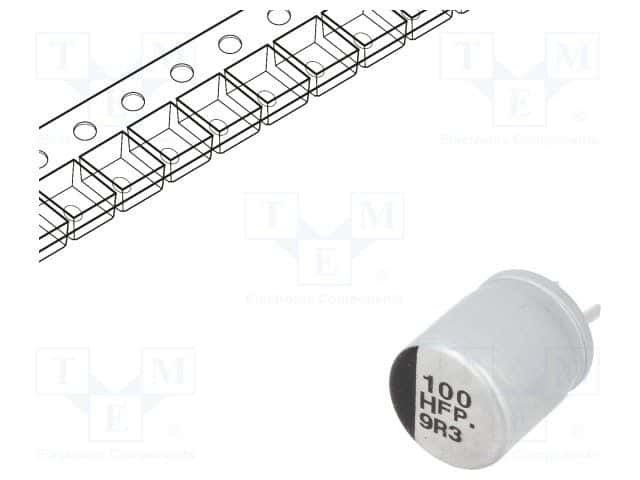

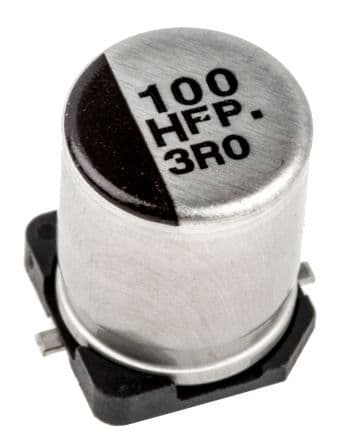

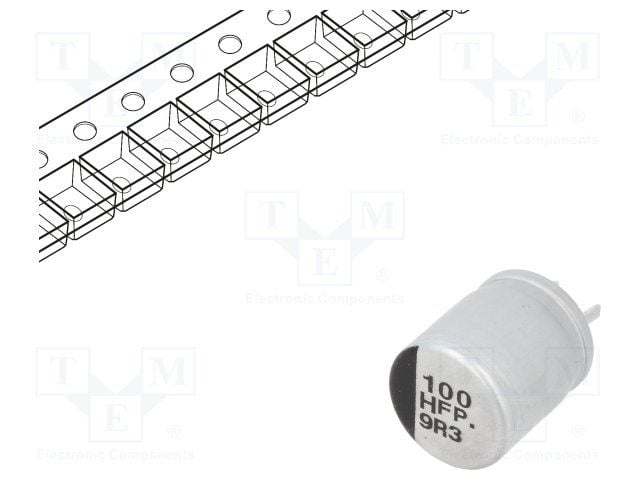

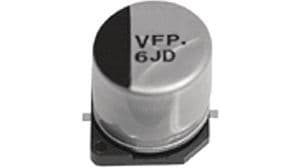

Product Images
