Surface mount aluminum electrolytic capacitor with 220µF capacitance and 50V voltage rating. Features 120mΩ ESR, 900mA ripple current, and 2000 hours of life at 105°C. Radial construction with a 10mm diameter and 10.2mm height, suitable for PCB mounting. General purpose application with 20% tolerance and 0.1% dissipation factor.
PackageRadial
Voltage50V
Capacitance220uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1H221AP technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 120mR |
| Features | General Purpose |
| Height | 10.2mm |
| Height - Seated (Max) | 0.413inch |
| Lead Pitch | 4.6mm |
| Leakage Current | 110uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |

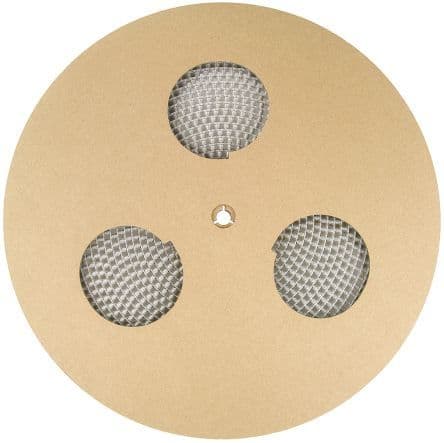

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 900mA |
| Ripple Current (AC) | 900mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FP1H221AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1H221AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
