Surface mount aluminum electrolytic capacitor with 100µF capacitance and 20% tolerance. Features a 35V DC rated voltage, 160mΩ ESR, and 600mA ripple current. Designed for a wide operating temperature range of -55°C to 105°C, with a 2000-hour life expectancy. This radial construction capacitor is RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FPV101XAP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 7.7mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 35uA |
| Length | 8mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FPV101XAP Datasheet
Download the complete datasheet for Panasonic EEE-FPV101XAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

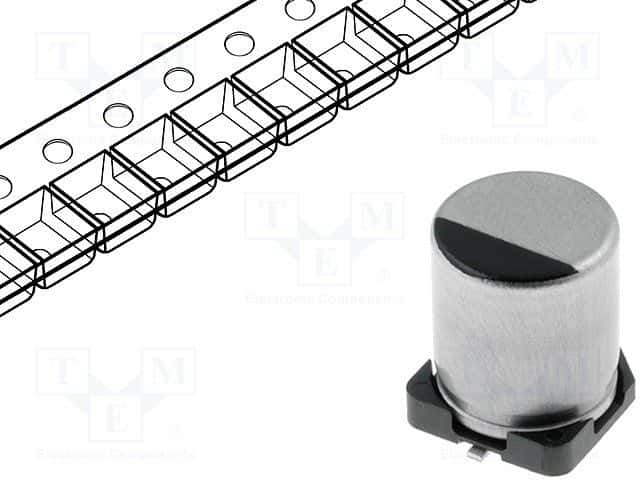

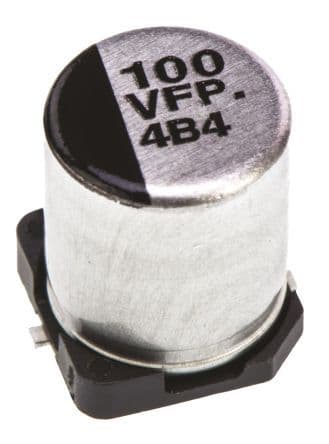

Product Images
