330uF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 80mR ESR, 115.5uA leakage current, and 850mA ripple current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable with SMD/SMT termination, supplied in tape and reel packaging. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1V331AP technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 80mR |
| Height | 10.2mm |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 115.5uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | FT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FT1V331AP Datasheet
Download the complete datasheet for Panasonic EEE-FT1V331AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

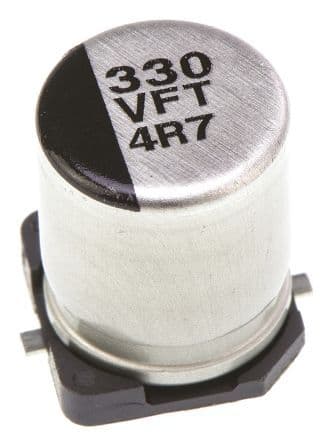

Product Images
