Surface mount aluminum electrolytic capacitor with 10µF capacitance and 16V DC rated voltage. Features a 1000-hour life at 105°C, 20% tolerance, and 3µA leakage current. This radial can, cylindrical construction component has a 4mm diameter and 5.4mm height, designed for PCB mounting. It operates from -40°C to 105°C and offers 28mA ripple current. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1C100R technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 28mA |
| Ripple Current (AC) | 28mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1C100R Datasheet
Download the complete datasheet for Panasonic EEE-HA1C100R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

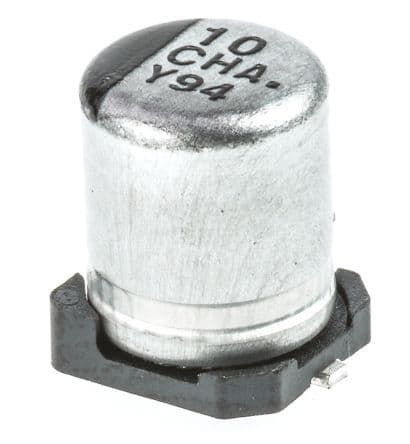

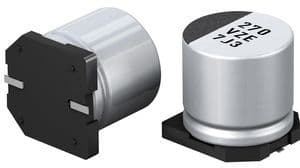

Product Images
