Surface mount aluminum electrolytic capacitor, 220µF capacitance, 16V DC rated voltage, with a ±20% tolerance. Features a 210mA ripple current rating, 35.2µA leakage current, and a life expectancy of 2000 hours at 105°C. Operates within a temperature range of -40°C to 105°C. Compliant with RoHS and AEC-Q200 standards. Supplied in tape and reel packaging.
PackageRadial
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1C221P technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Height | 10.2mm |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 35.2uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 210mA |
| Ripple Current (AC) | 210mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1C221P Datasheet
Download the complete datasheet for Panasonic EEE-HA1C221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

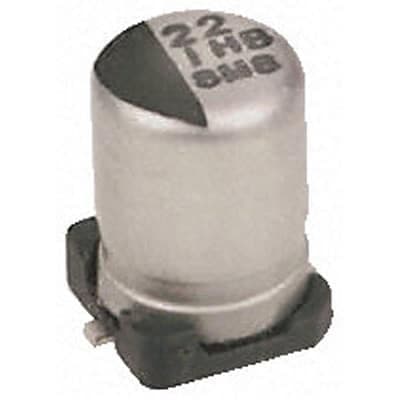

Product Images
