33µF, 25V aluminum electrolytic capacitor with 20% tolerance. Features a 5 x 5.4mm cylindrical construction, surface mount termination, and a 1.5mm lead pitch. Rated for 1000 hours at 105°C, with a ripple current of 45mA and leakage current of 3µA. This component is RoHS compliant and AEC-Q200 qualified, supplied in tape and reel packaging.
PackageRadial
Voltage25V
Capacitance33uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1E330WR technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 0.2% |
| Height | 5.4mm |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 45mA |
| Ripple Current (AC) | 45mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1E330WR Datasheet
Download the complete datasheet for Panasonic EEE-HA1E330WR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

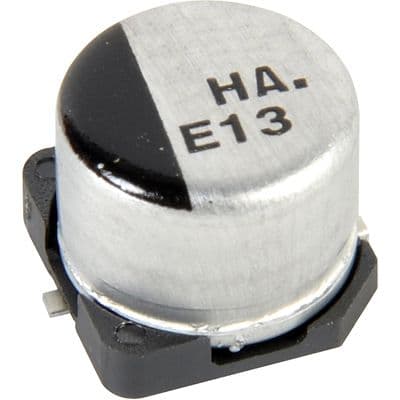

Product Images
