Aluminum electrolytic capacitor, 330µF capacitance, 25V DC rated voltage, 20% tolerance. Features a 340mA ripple current rating and a 2000-hour life at 105°C. Surface mount radial package with 10mm diameter and 10.2mm height. Operating temperature range from -40°C to 105°C. RoHS compliant with lead-free termination.
PackageRadial
Voltage25V
Capacitance330uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1E331P technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.16% |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 340mA |
| Ripple Current (AC) | 340mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1E331P Datasheet
Download the complete datasheet for Panasonic EEE-HA1E331P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

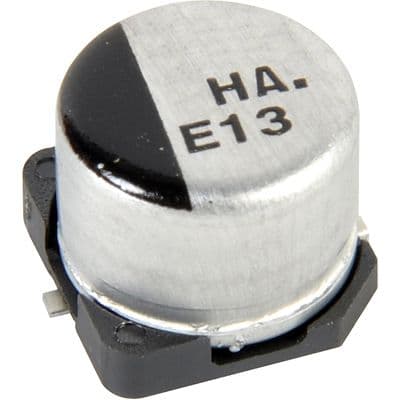

Product Images
