Surface mount aluminum electrolytic capacitor with 47µF capacitance and 50V DC rating. Features 20% tolerance, 100mA ripple current, and a maximum operating temperature of 105°C. This cylindrical component has a 10mm diameter, 10.2mm height, and 4.6mm lead pitch, with SMD/SMT termination. Designed for 2000 hours of life, it is RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage50V
Capacitance47uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1H470P technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 23.5uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 100mA |
| Ripple Current (AC) | 100mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1H470P Datasheet
Download the complete datasheet for Panasonic EEE-HA1H470P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

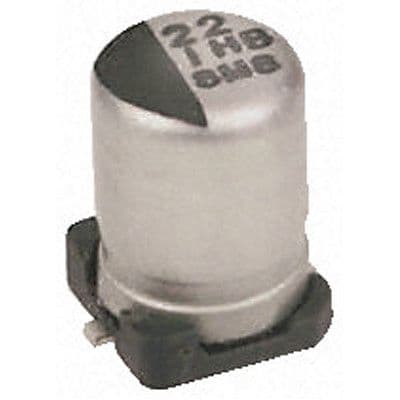

Product Images
