Surface mount aluminum electrolytic capacitor offering 22µF capacitance and 63V voltage rating. Features a 105°C maximum operating temperature with a 2000-hour lifespan. This radial can, cylindrical construction component is designed for PCB mounting with SMD/SMT termination and a 2.2mm lead pitch. It boasts a 20% tolerance and is RoHS compliant.
PackageRadial
Voltage63V
Capacitance22uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1J220UP technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Height | 6.2mm |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.2mm |
| Length | 6.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 25mA |
| Ripple Current (AC) | 25mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1J220UP Datasheet
Download the complete datasheet for Panasonic EEE-HA1J220UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

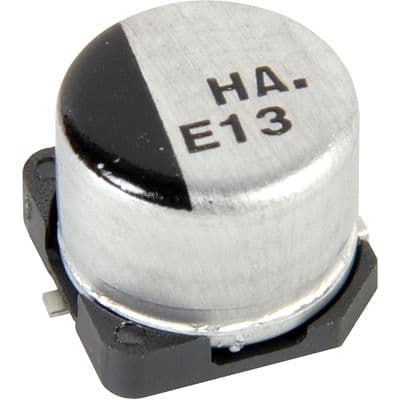

Product Images
