Surface mount aluminum electrolytic capacitor with 33µF capacitance and 10V DC rating. Features a 20% tolerance, 43mA ripple current, and a 2000-hour life at 105°C. This radial, cylindrical component measures 5mm in diameter and 5.8mm in height, with a 1.5mm lead pitch. AEC-Q200 qualified and RoHS compliant, it operates from -40°C to 105°C.
PackageRadial
Voltage10V
Capacitance33uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-HB1A330R technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dielectric Material
Aluminium
Height
5.8mm
Height - Seated (Max)
0.228inch
Lead Free
Lead Free
Lead Length
2.2mm
Lead Pitch
1.5mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Ripple Current
43mA
Ripple Current (AC)
43mA
RoHS Compliant
Yes
Series
HB
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-HB1A330R Datasheet
Download the complete datasheet for Panasonic EEE-HB1A330R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

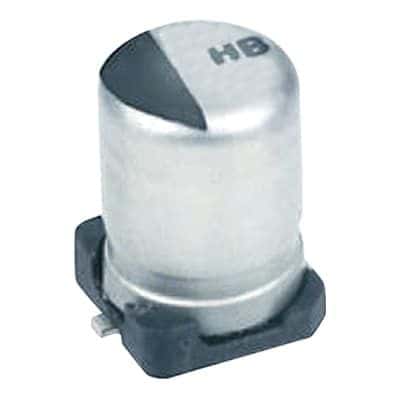

Product Images
