1µF, 50V aluminum electrolytic capacitor with 20% tolerance, suitable for surface mount applications. Features a 4mm diameter, 5.8mm height, and radial construction. Operates within a -40°C to 105°C temperature range, offering 2000 hours of life at rated conditions. Includes a leakage current of 3µA and a ripple current of 10mA. Lead-free and RoHS compliant.
PackageRadial
Voltage50V
Capacitance1uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-HB1H1R0AR technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Height | 5.8mm |
| Height - Seated (Max) | 0.228inch |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.1mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |

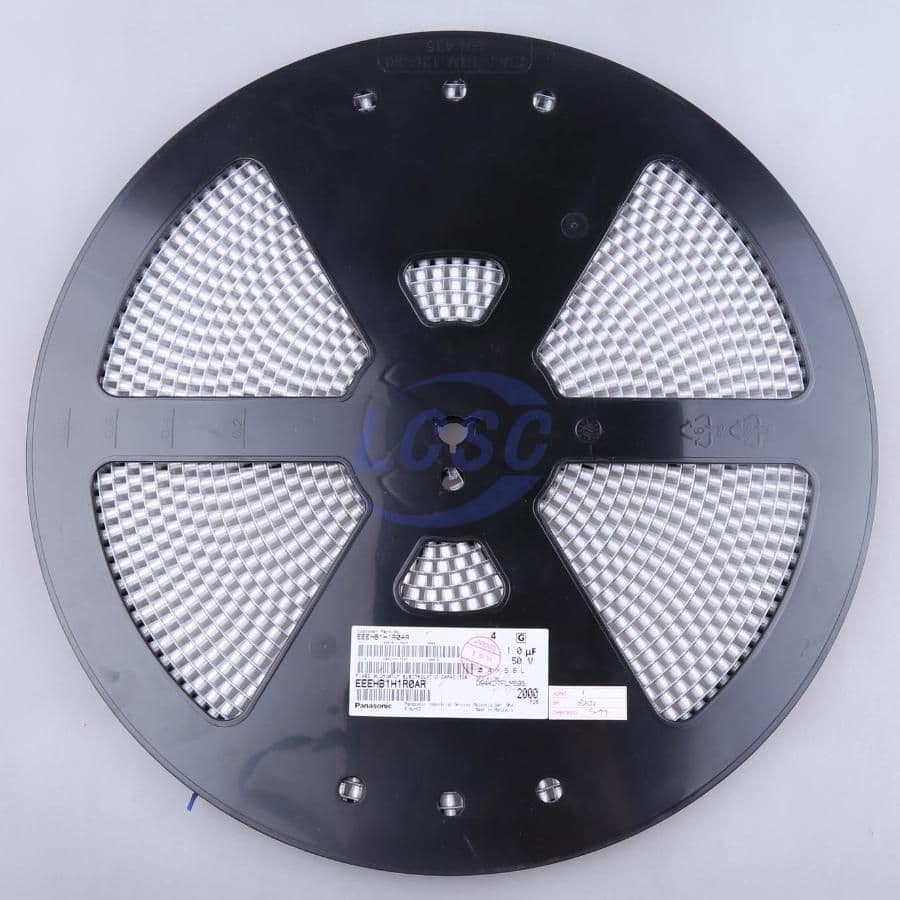

| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 10mA |
| RoHS Compliant | Yes |
| Series | HB |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HB1H1R0AR Datasheet
Download the complete datasheet for Panasonic EEE-HB1H1R0AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
