22µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features a 2000-hour life at 105°C, 55mA ripple current, and surface mount termination. Constructed in a cylindrical package with dimensions of 6.3mm diameter, 5.8mm height, and 5.5mm length. AEC-Q200 rated and RoHS compliant, supplied in tape and reel packaging.
PackageRadial
Capacitance22uF
Voltage Rating35V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic EEE-HB1V220P technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Height
5.8mm
Lead Free
Lead Free
Length
5.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Ripple Current
55mA
Ripple Current (AC)
55mA
RoHS Compliant
Yes
Series
HB
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Width
650um
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-HB1V220P Datasheet
Download the complete datasheet for Panasonic EEE-HB1V220P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

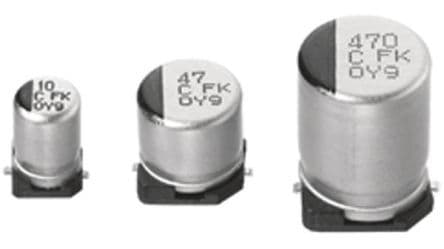

Product Images
