Aluminum electrolytic capacitor, 220µF capacitance, 10V DC rated voltage, 20% tolerance. Features 1.5Ω ESR and 160mA ripple current. Operates from -40°C to 105°C with a 5000-hour life expectancy. Surface mount radial package, 8mm diameter, 10.2mm height, 3.1mm lead pitch, 10.5mm length. RoHS compliant, AEC-Q200 rated.
PackageRadial
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-HD1A221AP technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 1.5R |
| Height | 10.2mm |
| Impedance | 1.5R |
| Lead Pitch | 3.1mm |
| Leakage Current | 22uA |
| Length | 10.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HD1A221AP Datasheet
Download the complete datasheet for Panasonic EEE-HD1A221AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

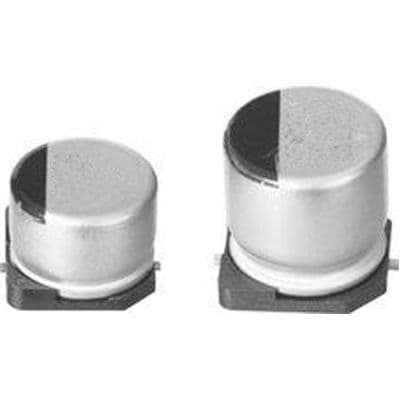

Product Images
