Surface mount aluminum electrolytic capacitor with 10µF capacitance and 35V DC rated voltage. Features a 20% tolerance, 5.5mm length, 5mm diameter, and 5.8mm height with a 1.5mm lead pitch. Offers 5000 hours of life at 105°C, 28mA ripple current, and 3.5µA leakage current. Includes AEC-Q200 rating and RoHS compliance.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-HD1V100AR technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| ESR (Equivalent Series Resistance) | 7.2R |
| Height | 5.8mm |
| Impedance | 7.2R |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 3.5uA |
| Length | 5.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 28mA |
| Ripple Current (AC) | 28mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HD1V100AR Datasheet
Download the complete datasheet for Panasonic EEE-HD1V100AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

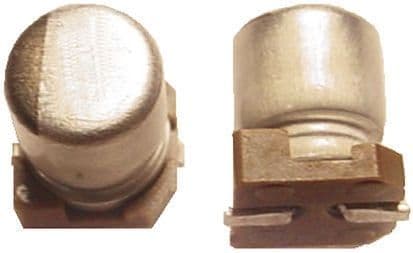

Product Images
