Aluminum electrolytic capacitor, 33µF capacitance, 63V voltage rating, and 20% tolerance. Features 1 Ohm ESR, 100mA ripple current, and a maximum operating temperature of 125°C. Surface mount radial construction with a cylindrical package measuring 8mm diameter and 10.2mm height. Designed for 2000 hours of life, this RoHS compliant component is supplied on tape and reel.
PackageRadial
Voltage63V
Capacitance33uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEE-TG1J330UP technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 1R |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 100mA |
| Ripple Current (AC) | 100mA |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TG1J330UP Datasheet
Download the complete datasheet for Panasonic EEE-TG1J330UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

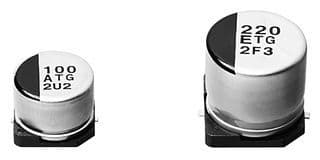

Product Images
