Aluminum electrolytic capacitor, 22µF capacitance, 80V voltage rating, and 20% tolerance. Features 1Ω ESR, 90mA ripple current, and a maximum operating temperature of 125°C. Surface mount radial package with cylindrical construction, measuring 10mm diameter and 10.2mm height. Designed for 2000 hours of life and supplied in tape and reel packaging.
PackageRadial
Voltage80V
Capacitance22uF
Voltage Rating80V
Quick Jump:
Technical Specifications
Panasonic EEE-TG1K220P technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 1R |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 90mA |
| Ripple Current (AC) | 90mA |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 80V |
| Voltage Rating | 80V |
| DC Rated Voltage | 80V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TG1K220P Datasheet
Download the complete datasheet for Panasonic EEE-TG1K220P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

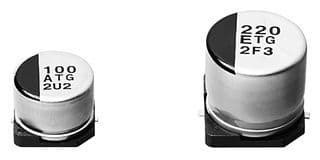

Product Images
