220µF, 25V aluminum electrolytic capacitor, featuring a 20% tolerance and 200mΩ ESR. This cylindrical, surface-mount component operates from -40°C to 125°C with a 3000-hour life expectancy. It offers a 270mA ripple current and 55µA leakage current. The capacitor is packaged in a Tape and Reel for PCB mounting.
PackageSMD/SMT
Voltage25V
Capacitance220uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1E221P technical specifications.
General
| Capacitance | 220uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 10mm |
| ESR (Equivalent Series Resistance) | 200mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 55uA |
| Length | 10.2mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 270mA |
| Ripple Current (AC) | 270mA |
| RoHS Compliant | Yes |
| Series | TK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TK1E221P Datasheet
Download the complete datasheet for Panasonic EEE-TK1E221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

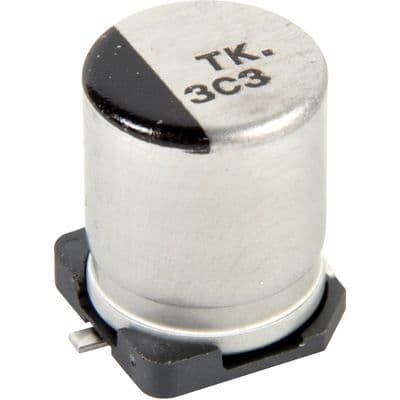

Product Images
