Aluminum electrolytic capacitor with 470µF capacitance and 16V DC rating. Features 20% tolerance, 150mΩ ESR, and 500mA ripple current. Designed for surface mount (SMD/SMT) applications with a cylindrical construction, measuring 10mm diameter and 10.2mm height. Operates from -40°C to 125°C with a 3000-hour life expectancy at rated conditions. Automotive qualified (AEC-Q200) and RoHS compliant, supplied in tape and reel packaging.
PackageSMD/SMT
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-TP1C471AP technical specifications.
General
| Capacitance | 470uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.23% |
| ESR (Equivalent Series Resistance) | 150mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Impedance | 150mR |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 75.2uA |
| Length | 10.5mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 500mA |
| Ripple Current (AC) | 500mA |
| RoHS Compliant | Yes |
| Series | TP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TP1C471AP Datasheet
Download the complete datasheet for Panasonic EEE-TP1C471AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

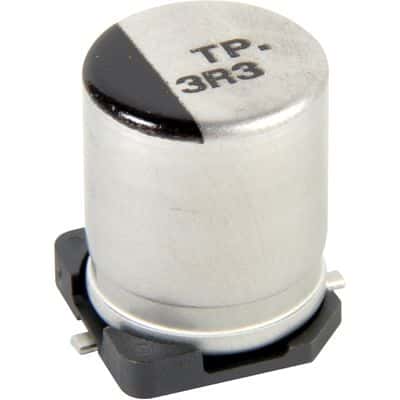

Product Images
