Technical Specifications

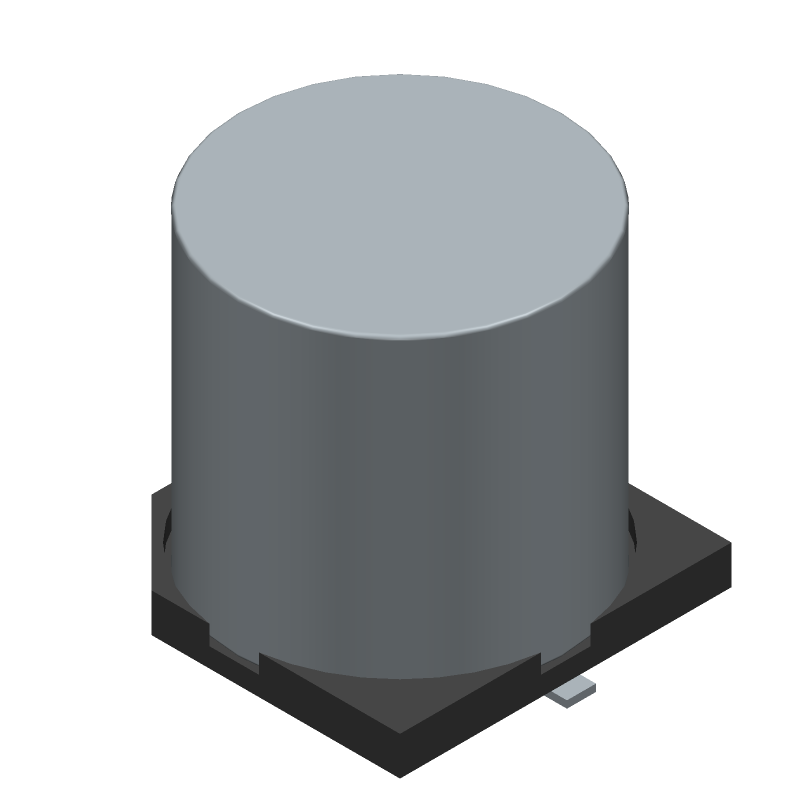

Panasonic EEEFK1V681AQ technical specifications.
General
| Max Operating Temperature | 105 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Width | 13.5 |
| Length | 13.5 |
| Polarity | POLARIZED |
| Capacitance | 680 |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR |
| DC Rated Voltage | 35 |
| Height | 13.5 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Panasonic EEEFK1V681AQ Datasheet
Download the complete datasheet for Panasonic EEEFK1V681AQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
