Surface mount polymer aluminum electrolytic capacitor with 22µF capacitance and 8V DC rated voltage. Features 20% tolerance, 28mΩ ESR, and 2A ripple current. Operates from -40°C to 105°C with a 1000-hour life rating. Housed in a 2917 (7343 metric) case code with a flat construction. Lead-free and RoHS compliant.
Package2917
Capacitance22uF
Resistance0.028R
Voltage Rating8V
Quick Jump:
Technical Specifications
Panasonic EEF-FD0K220R technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 0.06% |
| ESR (Equivalent Series Resistance) | 28mR |
| Height | 1.1mm |
| Height - Seated (Max) | 0.043inch |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.028R |
| Ripple Current | 2A |
| RoHS Compliant | Yes |
| Series | SP-Cap FD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 8V |
| DC Rated Voltage | 8V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEF-FD0K220R Datasheet
Download the complete datasheet for Panasonic EEF-FD0K220R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

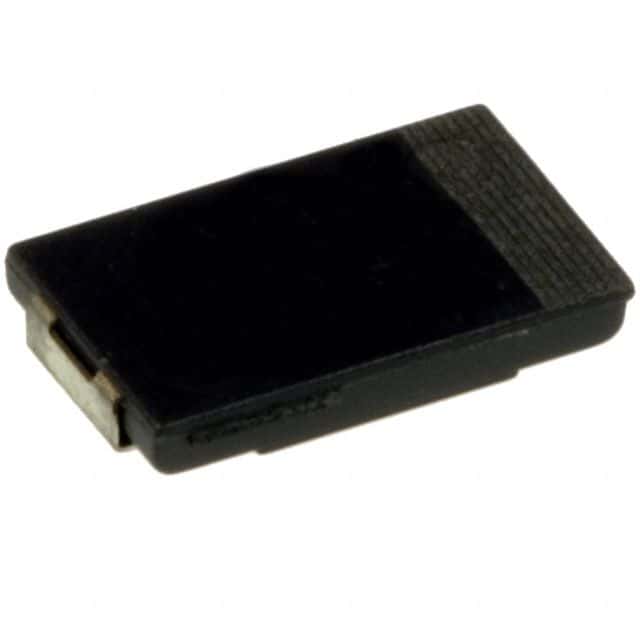

Product Images
