Surface mount aluminum polymer electrolytic capacitor offering 470µF capacitance with a 20% tolerance and 2V DC rated voltage. Features low 3mΩ ESR and 4A ripple current capability, operating from -40°C to 105°C. Housed in a 7343 metric (2917 imperial) case with dimensions of 7.3mm (L) x 4.3mm (W) x 1.9mm (H). This RoHS compliant component is supplied on tape and reel.
Package2917
Voltage2V
Capacitance470uF
Voltage Rating2V
Quick Jump:
Technical Specifications
Panasonic EEF-GX0D471R technical specifications.
General
| Capacitance | 470uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 3mR |
| Height | 1.9mm |
| Lead Diameter | 2.4mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.3mm |
| Leakage Current | 94uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 4A |
| Ripple Current (AC) | 4A |
| RoHS Compliant | Yes |
| Series | SP-Cap GX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 2V |
| Voltage Rating | 2V |
| DC Rated Voltage | 2V |
| Weight | 0.004586oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEF-GX0D471R Datasheet
Download the complete datasheet for Panasonic EEF-GX0D471R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

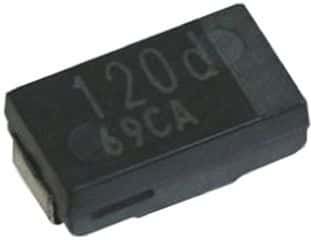

Product Images
