Aluminum Polymer Capacitor, 330µF capacitance, 2.5V DC rated voltage, 20% tolerance. Features 6mΩ ESR, 3.5A ripple current, and 105°C maximum operating temperature. Surface mount (SMD/SMT) component with dimensions of 7.3mm (L) x 4.3mm (W) x 1.9mm (H). Packaged in tape and reel for automated assembly.
Package2917
Voltage2.5V
Capacitance330uF
Voltage Rating2.5V
Quick Jump:
Technical Specifications
Panasonic EEF-SX0E331XE technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.06%
ESR (Equivalent Series Resistance)
6mR
Height
1.9mm
Leakage Current
82.5uA
Length
7.3mm
Life (Hours)
1000Hour
Material
Polymer
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
3500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
3.5A
Ripple Current (AC)
3.5A
RoHS Compliant
Yes
Series
SP-Cap SX
Termination
SMD/SMT
Tolerance
20%
Voltage
2.5V
Voltage Rating
2.5V
DC Rated Voltage
2.5V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEF-SX0E331XE Datasheet
Download the complete datasheet for Panasonic EEF-SX0E331XE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

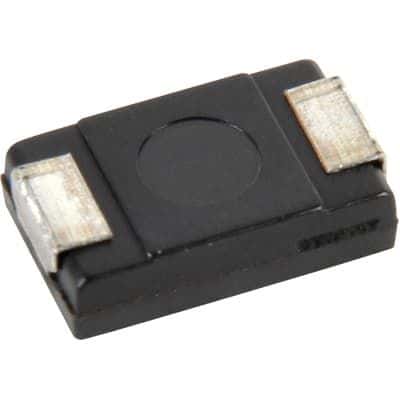

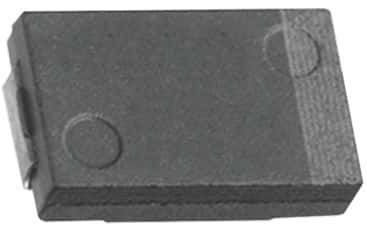

Product Images
