Aluminum electrolytic capacitor, 470µF capacitance, 400V DC rated voltage, and 20% tolerance. Features 282mΩ ESR at 120Hz, 2.01A ripple current, and a maximum operating temperature of 105°C. Snap-in termination with a 10mm lead pitch, housed in a 35mm diameter by 40mm height package. Designed for through-hole mounting with a 3000-hour life expectancy.
Voltage400V
Capacitance470uF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EET-ED2G471EA technical specifications.
General
| Capacitance | 470uF |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 282mR |
| Height | 40mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.01A |
| Ripple Current (AC) | 2.01A |
| RoHS Compliant | Yes |
| Series | TS-ED |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-ED2G471EA Datasheet
Download the complete datasheet for Panasonic EET-ED2G471EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

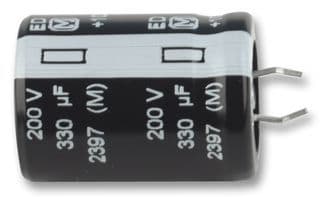

Product Images
