120µF, 450V aluminum electrolytic capacitor with 20% tolerance. Features 1.105Ω ESR at 120Hz and a ripple current rating of 1.02A. Designed for through-hole mounting with a 10mm lead pitch and snap-in termination. Operating temperature range is -25°C to 105°C, with a lifespan of 3000 hours. Dimensions are 30mm diameter and 25mm height.
PackageRadial
Voltage450V
Capacitance120uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-ED2W121DA technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 1.105R |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.02A |
| RoHS Compliant | Yes |
| Series | TS-ED |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-ED2W121DA Datasheet
Download the complete datasheet for Panasonic EET-ED2W121DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

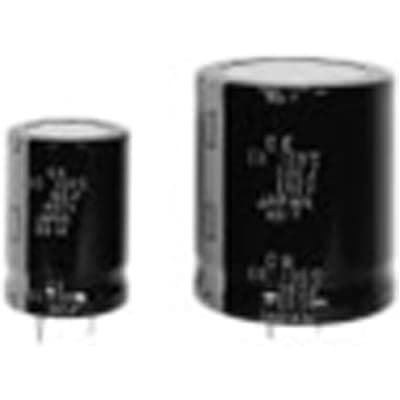

Product Images
