Aluminum electrolytic capacitor, 1.2mF capacitance, 250V DC rated voltage, 20% tolerance. Features 138mR ESR at 120Hz, 2.3A ripple current, and 2000-hour life at 105°C. Radial package with 30mm diameter, 45mm height, 10mm lead pitch, and through-hole mounting. RoHS compliant.
PackageRadial
Capacitance1.2mF
Resistance0.138R
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic EET-HC2E122DA technical specifications.
General
| Capacitance | 1.2mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 138mR |
| Height | 45mm |
| Lead Pitch | 10mm |
| Length | 45mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 0.138R |
| Ripple Current | 2.3A |
| Ripple Current (AC) | 2.3A |
| RoHS Compliant | Yes |
| Series | TS-HC |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HC2E122DA Datasheet
Download the complete datasheet for Panasonic EET-HC2E122DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

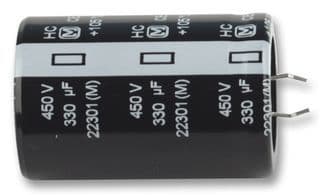

Product Images
