Aluminum electrolytic capacitor with 220µF capacitance and 400V DC rated voltage. Features a 25mm diameter, 35mm height, and 10mm lead pitch for through-hole mounting. Offers a 2000-hour lifetime at 105°C, 1.1A ripple current, and 829mΩ ESR at 120Hz. Compliant with RoHS standards.
PackageRadial
Voltage400V
Capacitance220uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic EET-HC2G221CA technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 829mR |
| Height | 35mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 35mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.1A |
| Ripple Current (AC) | 1.1A |
| RoHS Compliant | Yes |
| Series | TS-HC |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HC2G221CA Datasheet
Download the complete datasheet for Panasonic EET-HC2G221CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

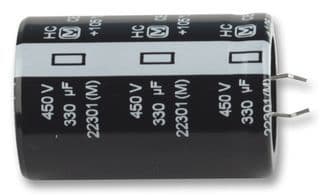

Product Images
