420V, 220uF aluminum electrolytic capacitor with snap-in termination. Features a 20% tolerance, 1.05A ripple current, and a lifespan of 3000 hours at 105°C. Radial package with 10mm lead pitch, 1.5mm lead diameter, 22mm diameter, and 40mm height. Suitable for through-hole mounting and operates from -25°C to 105°C. RoHS compliant.
PackageRadial
Voltage420V
Capacitance220uF
Voltage Rating420V
Quick Jump:
Technical Specifications
Panasonic EET-HD2S221HJ technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Height | 40mm |
| Height - Seated (Max) | 1.654inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.05A |
| Ripple Current (AC) | 1.05A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 420V |
| Voltage Rating | 420V |
| DC Rated Voltage | 420V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2S221HJ Datasheet
Download the complete datasheet for Panasonic EET-HD2S221HJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

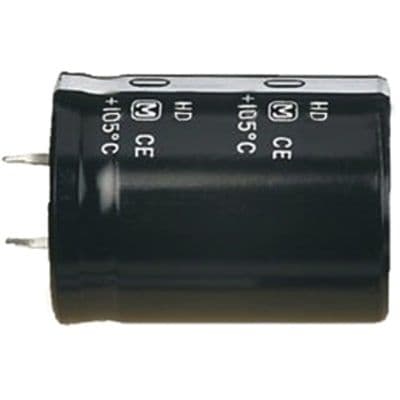

Product Images
