Aluminum electrolytic capacitor, 220µF capacitance, 450V DC rated voltage, 20% tolerance. Features a 3000-hour life at 105°C maximum operating temperature and 1A ripple current. Radial package with 22mm diameter, 45mm height, 1.5mm lead diameter, and 10mm lead pitch, suitable for through-hole mounting.
PackageRadial
Voltage450V
Capacitance220uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-HD2W221HJ technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Height | 45mm |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 45mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1A |
| Ripple Current (AC) | 1A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2W221HJ Datasheet
Download the complete datasheet for Panasonic EET-HD2W221HJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

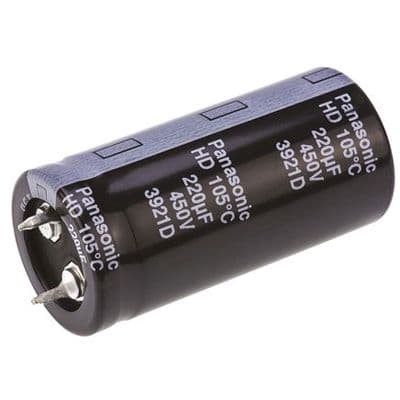

Product Images
