Aluminum electrolytic capacitor with 270µF capacitance and 450V DC rated voltage. Features 20% tolerance, 1.19A ripple current, and a lifespan of 3000 hours at 105°C. This radial component has a 30mm diameter and 30mm height, with a 10mm lead pitch and 1.5mm lead diameter for through-hole mounting. Operates from -25°C to 105°C and is RoHS compliant.
PackageRadial
Voltage450V
Capacitance270uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-HD2W271KJ technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.19A |
| Ripple Current (AC) | 1.19A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2W271KJ Datasheet
Download the complete datasheet for Panasonic EET-HD2W271KJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

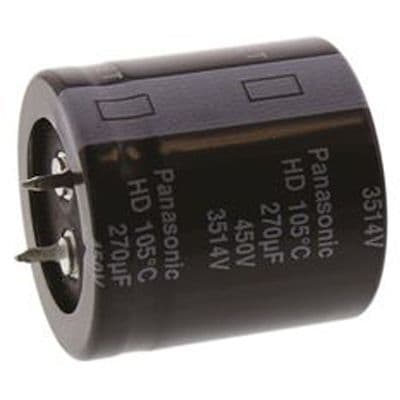

Product Images
