Radial aluminum electrolytic capacitor, 1500µF capacitance, 250V voltage rating. Features 133mΩ ESR, 4.04A ripple current, and a 2000-hour life at 85°C. Through-hole mounting with 10mm lead pitch and 0.8mm lead diameter. Dimensions include 35mm diameter and 40mm height. RoHS compliant.
PackageRadial
Voltage250V
Capacitance1.5mF
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic EET-UQ2E152EA technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 133mR |
| Height | 40mm |
| Height - Seated (Max) | 1.575inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 4.04A |
| Ripple Current (AC) | 4.04A |
| RoHS Compliant | Yes |
| Series | TS-UQ |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-UQ2E152EA Datasheet
Download the complete datasheet for Panasonic EET-UQ2E152EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

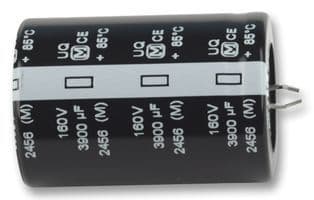

Product Images
