680µF, 250V DC radial aluminum electrolytic capacitor featuring a 25mm diameter and 10mm lead pitch for through-hole mounting. This component offers a 2000-hour lifetime at 85°C, with a dissipation factor of 15% and an ESR of 293mΩ at 120Hz. It operates within a temperature range of -40°C to 85°C and supports a ripple current of 2.5A.
PackageRadial
Voltage250V
Capacitance680uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic EET-UQ2E681CA technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 293mR |
| Height | 35mm |
| Height - Seated (Max) | 1.378inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Length | 35mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.5A |
| Ripple Current (AC) | 2.5A |
| RoHS Compliant | Yes |
| Series | TS-UQ |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-UQ2E681CA Datasheet
Download the complete datasheet for Panasonic EET-UQ2E681CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

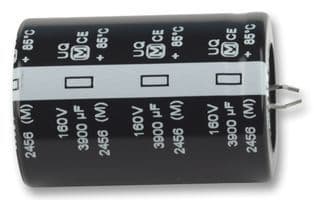

Product Images
