100uF radial aluminum electrolytic capacitor with 25V DC rated voltage and 20% tolerance. Features a 2.5mm lead pitch, 0.5mm lead diameter, and 6.3mm diameter. Operates from -40°C to 105°C with a 5000-hour life expectancy. Includes 95mA ripple current capability and 25uA leakage current. RoHS compliant and suitable for through-hole PCB mounting.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1E101S technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 22% |
| Height | 11.2mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 25uA |
| Length | 11mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 95mA |
| Ripple Current (AC) | 95mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1E101S Datasheet
Download the complete datasheet for Panasonic EEU-EB1E101S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

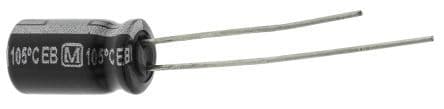

Product Images
