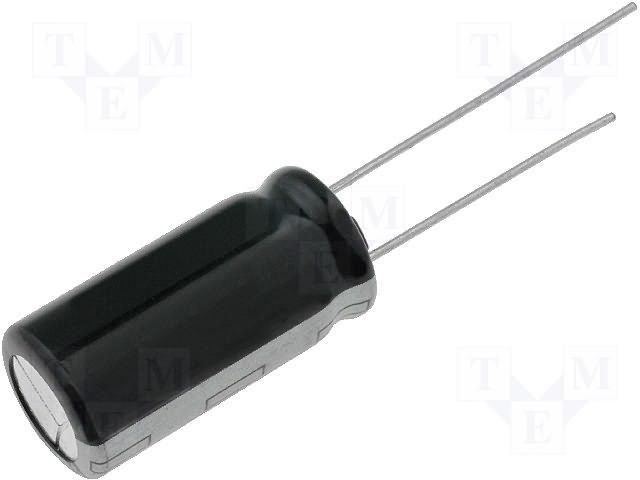

General purpose radial aluminum electrolytic capacitor with 1mF capacitance and 25V DC rated voltage. Features 20% tolerance, 498mA ripple current, and 250uA leakage current. Designed for through-hole PCB mounting with a 5mm lead pitch and 12.5mm diameter by 20mm height radial package. Operates from -40°C to 105°C with a 10000-hour life rating.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1E102 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.22% |
| Height | 20mm |
| Height - Seated (Max) | 0.787inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 250uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 498mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1E102 Datasheet
Download the complete datasheet for Panasonic EEU-EB1E102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
