Aluminum electrolytic capacitor with 330µF capacitance and 25V DC rated voltage, featuring 20% tolerance. This radial component offers a ripple current of 255mA and a leakage current of 82.5µA. Designed for through-hole PCB mounting, it operates from -40°C to 105°C with a 10,000-hour life expectancy. The package dimensions are 8mm diameter by 15mm height, with a 3.5mm lead pitch and 0.6mm lead diameter.
PackageRadial
Voltage25V
Storage15mm
Capacitance330uF
Quick Jump:
Technical Specifications
Panasonic EEU-EB1E331 technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dissipation Factor | 0.22% |
| Height | 15mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 82.5uA |
| Length | 15mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 255mA |
| RoHS Compliant | Yes |
| Series | EB |
| Size | 15mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1E331 Datasheet
Download the complete datasheet for Panasonic EEU-EB1E331 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

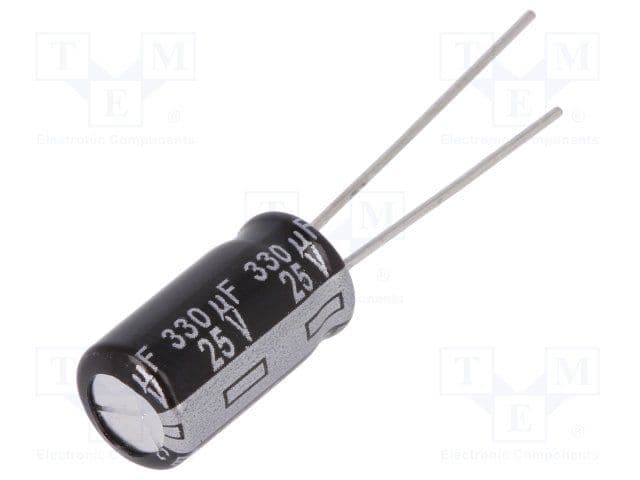

Product Images
