220uF, 63V radial aluminum electrolytic capacitor with 20% tolerance. Features a 10mm diameter, 20mm height, and 5mm lead pitch for through-hole PCB mounting. Offers a 10000-hour life at 105°C, with a leakage current of 138.6uA and a ripple current of 292mA. Dissipation factor is 0.12%, operating temperature range is -40°C to 105°C. RoHS compliant.
PackageRadial
Voltage63V
Capacitance220uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1J221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| Height | 20mm |
| Height - Seated (Max) | 0.787inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 138.6uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 292mA |
| Ripple Current (AC) | 292mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1J221 Datasheet
Download the complete datasheet for Panasonic EEU-EB1J221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

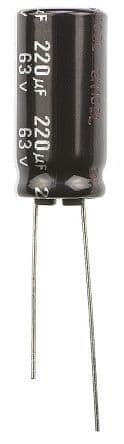

Product Images
