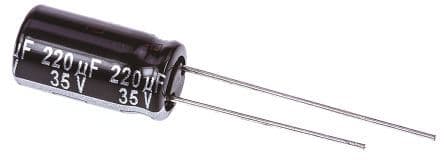

220µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features a 105°C maximum operating temperature, 10,000-hour life, and 197mA ripple current. Through-hole mounting with 3.5mm lead pitch and 0.6mm lead diameter. 8mm diameter, 15mm height, and 15mm length.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1V221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dissipation Factor | 0.18% |
| Height | 15mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 77uA |
| Length | 15mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 197mA |
| Ripple Current (AC) | 197mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1V221 Datasheet
Download the complete datasheet for Panasonic EEU-EB1V221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
