General purpose aluminum electrolytic capacitor with 68µF capacitance and 250V DC rated voltage. Features 20% tolerance, 1.4A ripple current, and a maximum operating temperature of 105°C. This radial component has a 7.5mm lead pitch, 0.8mm lead diameter, and dimensions of 16mm diameter by 20mm height. Designed for through-hole PCB mounting, it offers 10000 hours of life and is RoHS compliant.
PackageRadial
Voltage250V
Capacitance68uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2E680S technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 1.03mA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.4A |
| Ripple Current (AC) | 1.4A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2E680S Datasheet
Download the complete datasheet for Panasonic EEU-EE2E680S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

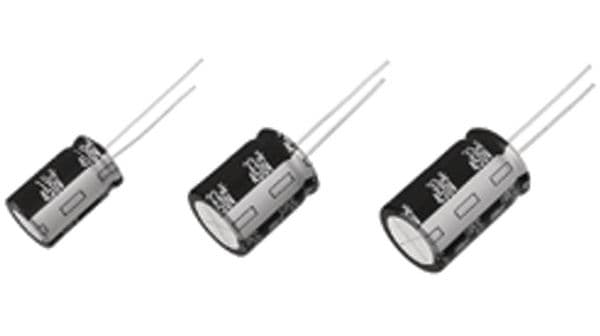

Product Images
