General purpose radial aluminum electrolytic capacitor with 68µF capacitance and 20% tolerance. Features a 400V DC rated voltage, 105°C maximum operating temperature, and 10000-hour life. This through-hole component has a 7.5mm lead pitch, 0.8mm lead diameter, and measures 18mm in diameter and 25mm in height. RoHS compliant with a leakage current of 1.642mA and a ripple current of 1.47A.
PackageRadial
Voltage400V
Capacitance68uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2G680 technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Features | General Purpose |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 1.642mA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.47A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2G680 Datasheet
Download the complete datasheet for Panasonic EEU-EE2G680 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

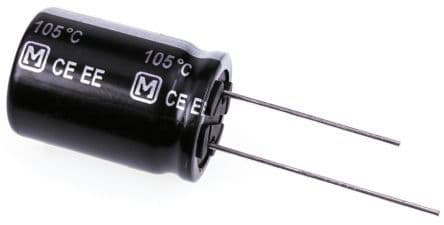

Product Images
