68µF radial aluminum electrolytic capacitor with 450V DC rated voltage and 20% tolerance. Features a 1.8A ripple current, 10000-hour life at 105°C, and a low dissipation factor of 0.24%. Through-hole mounting with 7.5mm lead pitch and 0.8mm lead diameter. Dimensions include 18mm diameter and 40mm height. RoHS compliant.
PackageRadial
Voltage450V
Capacitance68uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2W680 technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Height | 40mm |
| Height - Seated (Max) | 1.654inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 1.846mA |
| Length | 40mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.8A |
| Ripple Current (AC) | 1.8A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2W680 Datasheet
Download the complete datasheet for Panasonic EEU-EE2W680 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

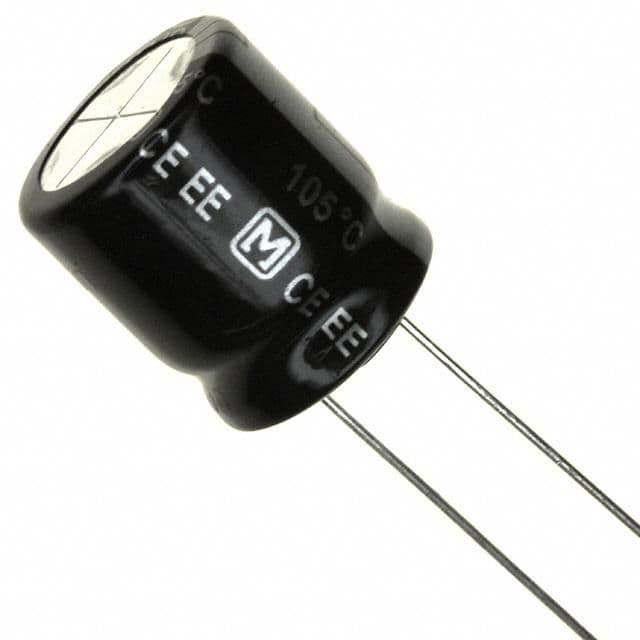

Product Images
