Aluminum electrolytic capacitor with 220µF capacitance and 10V DC rated voltage, featuring 20% tolerance. This radial component offers 400mA ripple current, 250mΩ ESR, and a 1000-hour life at 105°C. Designed for through-hole PCB mounting, it has a 2.5mm lead pitch and a 6.3mm diameter by 15mm height. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1A221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 250mR |
| Height | 15mm |
| Impedance | 250mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 3uA |
| Length | 15mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 400mA |
| Ripple Current (AC) | 400mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1A221 Datasheet
Download the complete datasheet for Panasonic EEU-FC1A221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

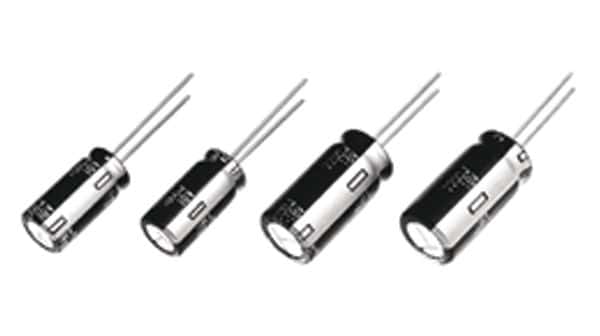

Product Images
