Radial aluminum electrolytic capacitor with 2.2mF capacitance and 25V voltage rating. Features 22mR ESR, 2.51A ripple current, and 5000-hour life at 105°C. Through-hole mounting with a 5mm lead pitch and 0.8mm lead diameter. AEC-Q200 and RoHS compliant.
PackageRadial
Voltage25V
Capacitance2.2mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1E222 technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
16%
ESR (Equivalent Series Resistance)
22mR
Height
35mm
Impedance
22mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
3uA
Length
35mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
2.51A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
Voltage Rating (AC)
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1E222 Datasheet
Download the complete datasheet for Panasonic EEU-FC1E222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

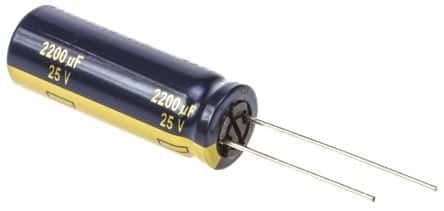

Product Images
