Radial aluminum electrolytic capacitor, 22µF capacitance, 50V DC rated voltage, 20% tolerance. Features 1.3Ω ESR/impedance, 155mA ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 1000-hour life rating. Through-hole mounting, RoHS compliant, AEC-Q200 qualified.
PackageRadial
Voltage50V
Storage11mm
Capacitance22uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 1.3R |
| Height | 11mm |
| Impedance | 1.3R |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 155mA |
| Ripple Current (AC) | 155mA |
| RoHS Compliant | Yes |
| Series | FC |
| Size | 11mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H220 Datasheet
Download the complete datasheet for Panasonic EEU-FC1H220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

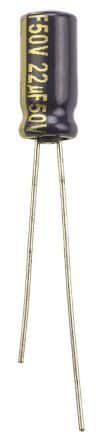

Product Images
