Radial aluminum electrolytic capacitor with 220µF capacitance and 50V DC rated voltage. Features 20% tolerance, 90mΩ ESR, and 1.03A ripple current capability. Operates from -55°C to 105°C with a 3000-hour lifespan at rated conditions. Through-hole mounting with a 5mm lead pitch and 10x20mm dimensions. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage50V
Storage20mm
Capacitance220uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 90mR |
| Height | 20mm |
| Impedance | 90mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3A |
| Length | 20mm |
| Life (Hours) | 3000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.03A |
| RoHS Compliant | Yes |
| Series | FC |
| Size | 20mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H221 Datasheet
Download the complete datasheet for Panasonic EEU-FC1H221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

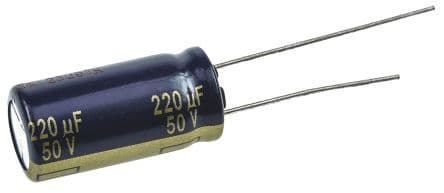

Product Images
