Radial aluminum electrolytic capacitor with 2.2µF capacitance and 20% tolerance. Features a 50V DC rated voltage, 105°C maximum operating temperature, and 1000-hour life. Includes 1.8Ω ESR, 45mA ripple current, and 3µA leakage current. Designed for through-hole PCB mounting with a 2mm lead pitch and 5mm diameter. RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage50V
Storage11mm
Capacitance2.2uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H2R2 technical specifications.
General
Capacitance
2.2uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
1.8R
Height
11mm
Impedance
1.8R
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2mm
Leakage Current
3uA
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
45mA
RoHS Compliant
Yes
Series
FC
Size
11mm
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1H2R2 Datasheet
Download the complete datasheet for Panasonic EEU-FC1H2R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

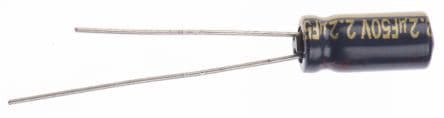

Product Images
